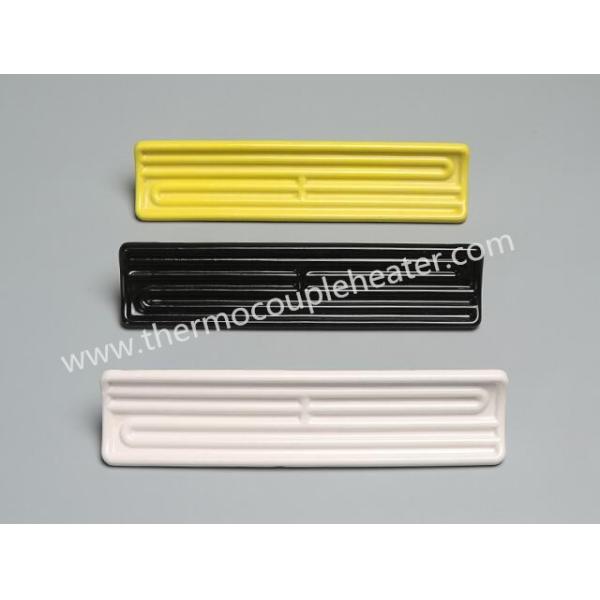

noncorrosive 96% Infrared Ceramic Heating Panels 245*60mm

Brand Name : GME

Place of Origin : China

MOQ : 20 pcs

Payment Terms : L/C, Western Union, T/T, Paypal

Supply Ability : 200,000 pcs per month

Delivery Time : 1-3 weeks

Packaging Details : Standard exporting package

Material : Ceramic

Shape : Flat, C-shape, Square, Round

Color : White, Black, Yellow

Voltage : 120V, 220V, 230V, 240V, 480V

Power : 100W-1000W

Thermocouple : Available

Contact Now

Ceramic Infrared Heater Panels IR Ceramic Heating Element

1. Introduction

Ceramic infrared heaters are 96% infrared energy efficient, uses for electric infrared heat can be found in many industries and applications and can be grouped into four major categories:

1) Curing

2) Drying

3) Heating

4) Cooking

5) Saunas

2. Technical data

Heat founder have has a wide range of IR ceramic heaters in ceramic and quartz, available WITH thermocouple and without thermocouple from 60 to 1000W

Standard Size (mm) Can be customized	Type	Shape	Color (Can be customized)	Power	Thermocouple ( K, J type )
60*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	100w - 300w	Insertion type or Sintered type
122*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	125w - 500w	Insertion type or Sintered type
122*122	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	150w - 1000w	Insertion type or Sintered type
245*60	Hollow, Solid	Flat, Arc, Round	White, Black, Yellow, Pink	150w - 1000w	Insertion type or Sintered type

3. Feature

1) Durable, splash-proof, non-corrosive finish

2 )Watt densities from 3 w/cm² (tolerance within +/- 2% )

3 )Maximum temperature output is 1292 F (700 C)

4 )Available color in white/ black/yellow

5 )Standard voltages: 220/230V

6 )Estimated life in excess of 10,000 hours

7 )Available with thermocouple and without thermocouple

8 )Nickel chrome wire for heating element
